Timber Batten System

Timber Batten System

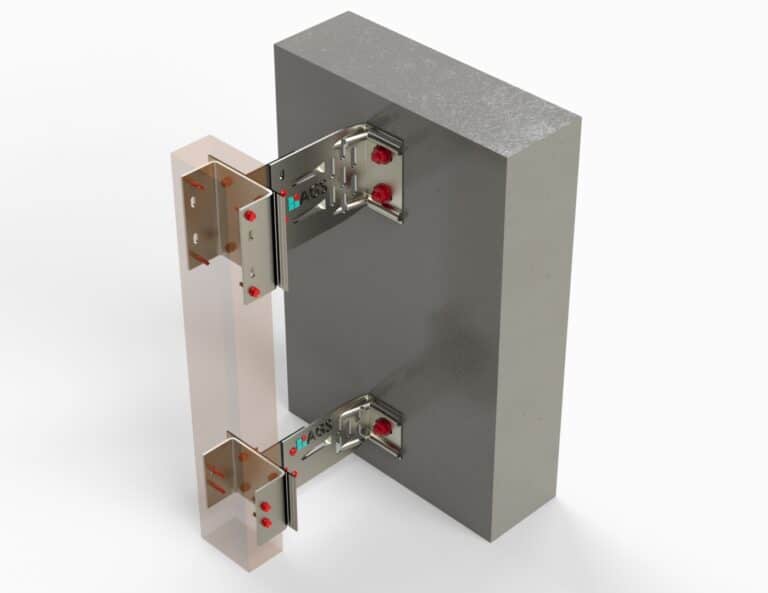

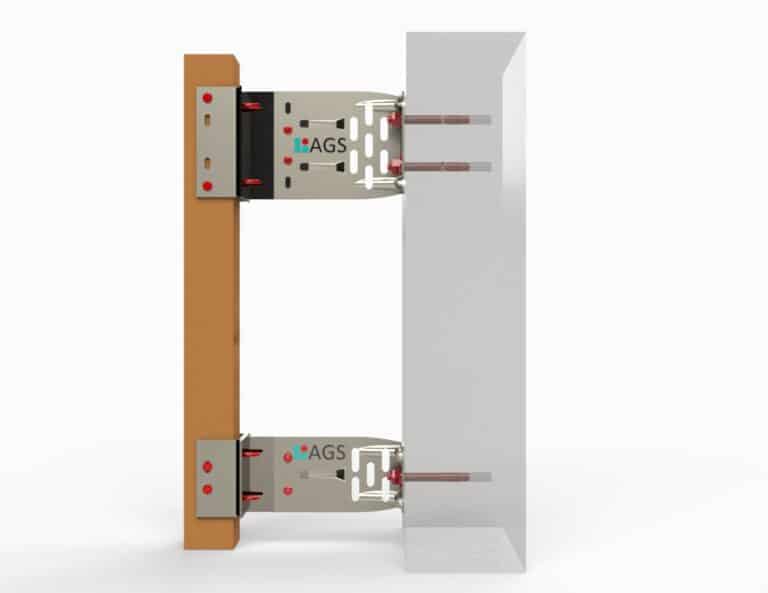

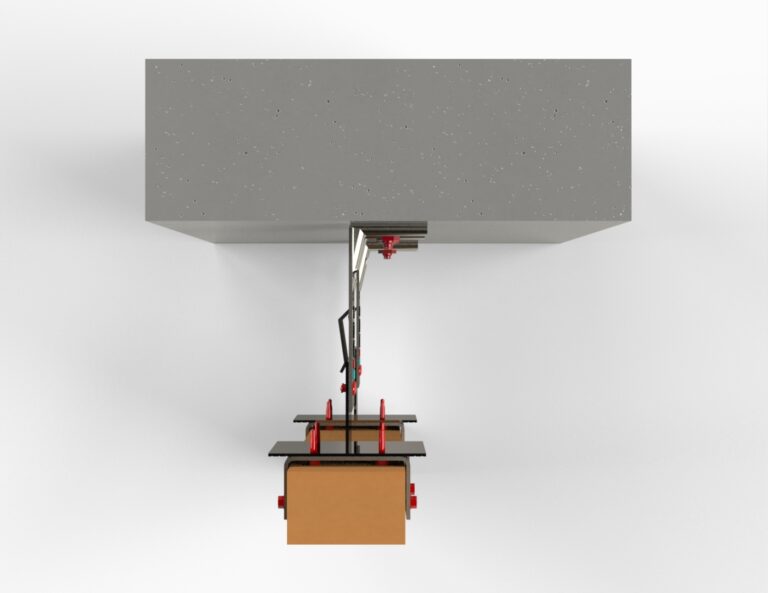

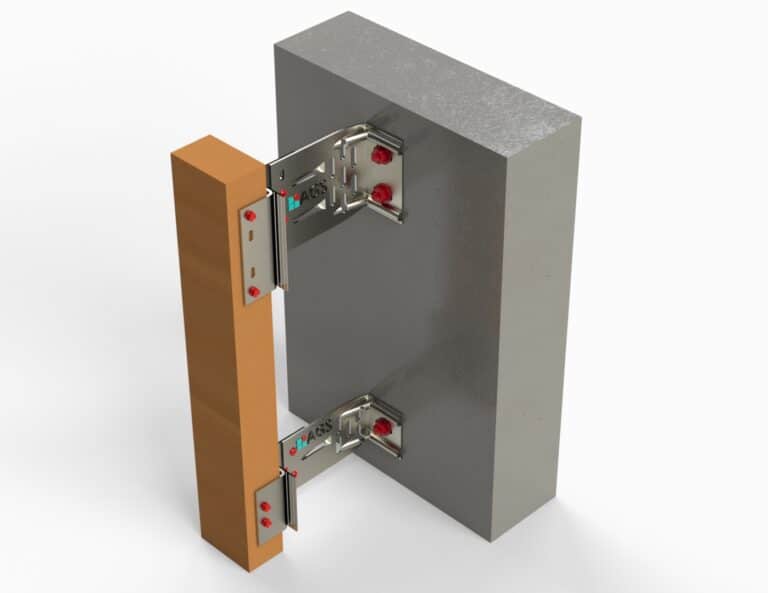

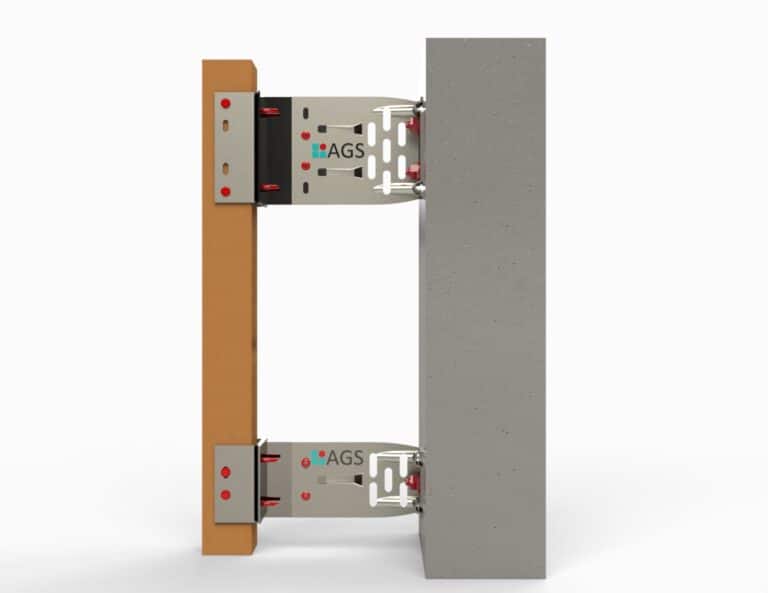

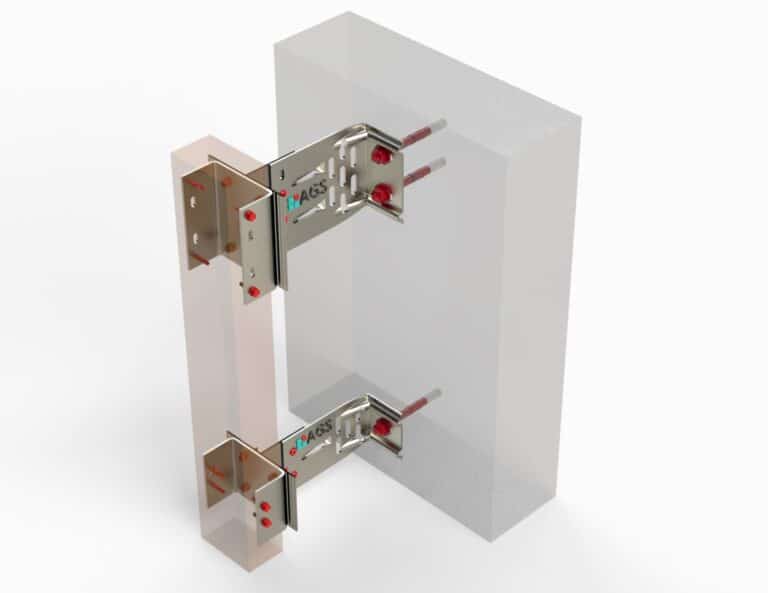

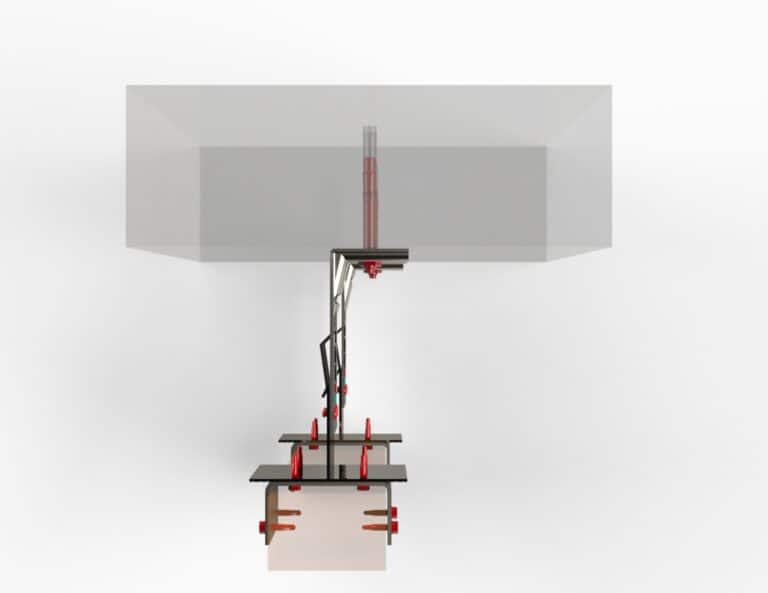

Our innovative Timber Batten Rainscreen Cladding System is designed to provide optimal support for vertical or horizontal timber or cement weatherboarding. With the integration of AGS-T and L profiles, this versatile system can also accommodate the attachment of panels to support various materials such as copper, zinc, and more. Crafted with top-grade Magnelis®, our cladding system offers superior corrosion resistance, making it an ideal choice for all your cladding needs.

The Ultimate Solution for Supporting Timber Cladding and Weatherboarding

The exceptional design of our Timber Batten Rainscreen Cladding System allows for seamless integration with timber cladding and weatherboarding applications. This provides excellent support for ply panelling while ensuring a durable and robust structure that maintains its integrity over time.

Magnelis®: The Pinnacle of Corrosion Resistance

At the core of our rainscreen cladding system lies Magnelis®, a top-quality metallic coated steel that offers unparalleled corrosion resistance. Its advanced composition ensures long-lasting protection against harsh environmental conditions, significantly prolonging the lifespan of your cladding installation.

AGS Bracket Technology: Enhanced Stability & Flexibility

Incorporating AGS single and double brackets into the design of our cladding system enables maximum stability and flexibility, effortlessly catering to a variety of project requirements.

  • AGS Single Brackets absorb wind loading whilst allowing for expansion and contraction movements. This prevents structural damage caused by fluctuating temperatures.
  • AGS Double Brackets are designed to withstand vertical dead loads, providing added support for heavier facade installations.

The spacing between AGS single and double brackets is determined by factors such as dimensions, weight of the facade cladding material used, and project location-specific wind load calculations. This customised approach ensures optimal support and stability for your cladding project.

Adaptable to an Array of Applications

Our Timber Batten Rainscreen Cladding System is ideal for a wide range of applications, including:

  • Residential and commercial buildings
  • Educational institutions
  • Healthcare facilities
  • Industrial complexes

No matter the scale or complexity of your project, our rainscreen cladding system offers the perfect solution to ensure a reliable and durable installation.

Easy Installation & Maintenance

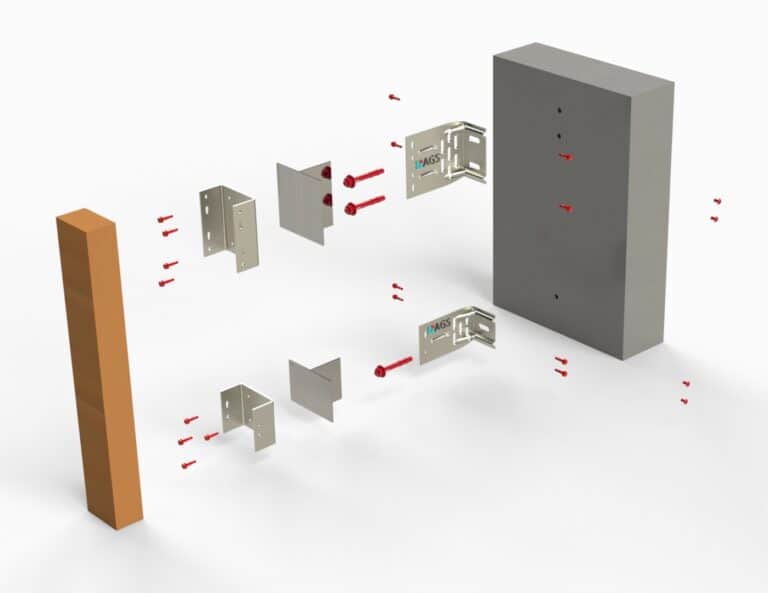

The Timber Batten Rainscreen Cladding System has been designed with ease-of-installation in mind. The AGS brackets are mounted through single and double bracket fixtures, ensuring a secure and straightforward setup. Additionally, our system requires minimal maintenance due to its robust Magnelis® construction, saving you time and resources in the long run.

Choose Sustainability: Environmentally-Friendly Materials

As part of our commitment to sustainability, we ensure that all materials used in our Timber Batten Rainscreen Cladding System are environmentally-friendly. By choosing our cladding solution, you’re not only investing in a high-quality product but also supporting eco-conscious practices within the industry.

Contact Us Today!

For more information on our premium Timber Batten Rainscreen Cladding System or to discuss your specific project requirements with one of our expert team members, please don’t hesitate to get in touch today! We’d be delighted to assist you in finding the optimal cladding solution for your needs.

Available Profiles​

L Shaped Profiles

L Shaped Profiles

Aluminium L Profiles

NameDimensions A (mm)Dimensions B (mm)Thickness (mm)Max Length (mm)
L Profile K160 mm40 mm2 mm7 mm
L Profile Hangers60 mm100 mm2 mm7 mm
L Profile 0140 mm40 mm2 mm 7mm
L Profile 0250 mm50 mm2 mm 7mm

Magnelis L-Profiles

NameDimensions A (mm)Dimensions B (mm)Thickness (mm) Max Length (mm)
L Profile M160 mm40 mm1.5 mm 7 mm
L Profile M260 mm100 mm1.5 mm 7 mm
L Profile M340 mm40 mm1.5 mm 7 mm
L Profile M450 mm50 mm1.5 mm 7 mm
L Profile M560 mm40 mm2.5 mm 7 mm
L Profile M660 mm100 mm2.5 mm 7 mm
L Profile M740 mm40 mm2.5 mm 7 mm
L Profile M850 mm50 mm2.5 mm 7 mm

Aluminium T Profiles​

NameDimensions A (mm)Dimensions B (mm)Thickness (mm)Max length
T Profile T160 mm100 mm2 mm7mm
T Profile T260 mm40 mm2 mm7mm
T Profile T392 mm90 mm2 mm7mm
T Profile 0150 mm110 mm2 mm7mm
T Profile 0250 mm120 mm2 mm7mm
T Profile 0370 mm120 mm2 mm7mm
T Profile 0450 mm140 mm2 mm7mm
T Profile s/Steel insert fire rated 120 minutes60 mm100 mm2 mm7mm

T-Shaped Profiles

T Shaped Profiles

Ready To Start A New Project With AGS System?​

Require all the details about the exterior cladding for your project? Send over your design and we'll get in touch soon.
