Fire Test & Certification

Fire safety is paramount in the construction industry. Ensuring that building materials can withstand intense heat and flames is not just a regulatory requirement but a matter of life and death. AGS System’s ventilated facade solutions have undergone rigorous fire testing and certification to ensure their safety, reliability, and quality. This article provides an in-depth look at the fire tests and certifications, the unique properties of AGS’s products, and the implications for construction projects.

Play Video

Fire and Thermal Conductivity: AGS Single Brackets

AGS Single brackets are designed to absorb wind loading and allow for expansion and contraction. They are made from Magnelis®, a unique pre-galvanised steel with a zinc-based coating that includes 3.5% aluminium and 3% magnesium. This composition ensures the highest protection and durability, even in aggressive environments.

The patented brackets design takes care of elements like hole drilling, extending the way temperature spreads through the bracket, and improving overall thermal isolation.

Rainscreen Cladding Fire Test Results

The Instytut Techniki Budowlanej (ITB) uses modern research methodologies and specialist measurement equipment to conduct tests on construction products. A certificate from the Building Research Institute is considered a mark of safety, reliability, and quality, providing reassurance of the product’s fitness-for-purpose.

Certification Includes:

  1. Factors Relating to Compliance with Building Regulations: Ensuring that AGS products meet the necessary building codes and standards.
  2. Fire Resistance of AGS Products: Evaluating the ability of AGS products to withstand fire and maintain structural integrity.
  3. Comparison of Different Constructional Solutions: Identifying the most reliable fire safety solution by comparing various construction methods.
  4. Testing of Facade Cladding Made of Various Materials: Including sintered stone, panelling made of composites and aluminium or steel sheets, glass-reinforced concrete, framed and frameless photovoltaic modules, and fibre-cement panels.

Final Comments on Certification

This technical evaluation will remain valid indefinitely, provided that no material or technical changes are made to the AGS substructure systems. It underscores the commitment of AGS to quality and safety in all its products.

Product Scope and Summary of the Certificate

The Certificate tests AGS System’s ventilated facade solutions in the event of a fire in the Fire Research Laboratory of the Building Research Institute. It is a comprehensive examination of the products’ performance under extreme conditions.

Key Factors Assessed

The fire test and certification process evaluates several critical aspects:

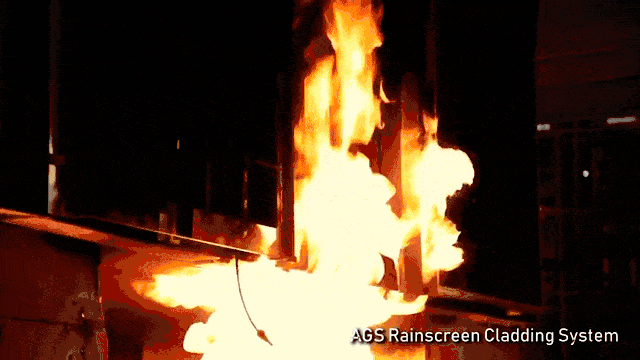

  1. Support Structure of the Cladding: A fragment of the facade was exposed to heat using a gas-fired burner with intensity equal to that of an actual, regular fire. Observations were made on the fragments of panels that crack and fall off.
  2. Integrity of the Connection: Apart from local deformations, the integrity of the cladding systems’ connection to the floor they were mounted on was assessed.
  3. Possibility of Safe Evacuation: The falling off of facade cladding fragments, which can create a hazard in the evacuation area, was tested to ensure safe evacuation during a fire.
fire test

Results

The AGS system substructure demonstrated remarkable resilience in the case of fire:

  1. Integrity Maintenance: The substructure kept its integrity, allowing the rescue team to evacuate people within 120 minutes.
  2. Durability of Mounting: While the aluminium grids of AGS substructure systems may gradually melt down, the stainless steel reinforcement strips in L and T profile types provided a durability of mounting of 120 minutes, allowing rescue teams to evacuate people safely.

Fire Certification: What It Means for Your Project

The fire certification for AGS System’s ventilated facade solutions is a testament to the quality and safety of these products. If you are involved in a construction project where fire safety is a critical concern, AGS System’s certified products offer a reliable and proven solution

Contact Information

For further inquiries, you can reach out to AGS System at:

  • Address: 8 The Causeway Suite K, Teddington TW11 0HE
  • Phone: 020 8703 2183
  • Email: info@agssytem.co.uk

Peace of mind

Fire safety is a non-negotiable aspect of building construction, and AGS System’s ventilated facade solutions have proven their worth through rigorous testing and certification. The innovative design, quality materials, and meticulous attention to detail make AGS products a preferred choice for construction professionals. Whether you are an architect, builder, or property owner, AGS System’s fire-resistant solutions offer peace of mind and assurance that your building is equipped to handle the unexpected.
