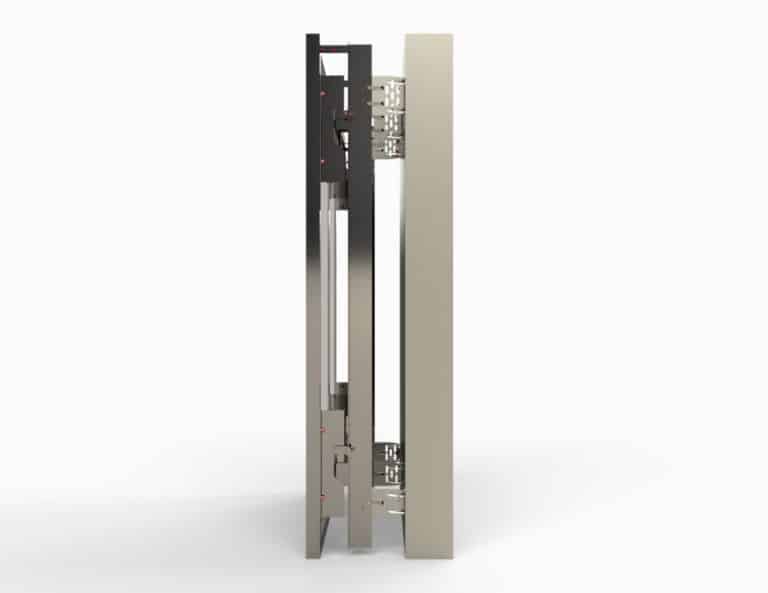

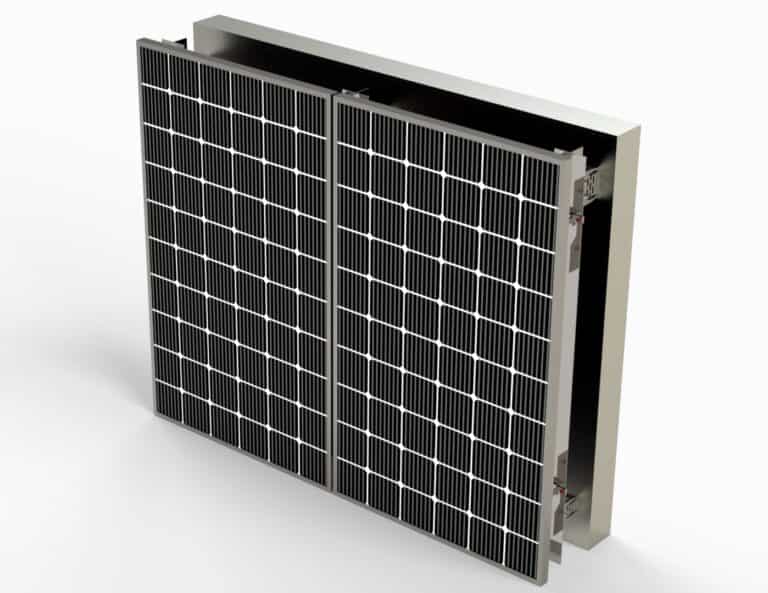

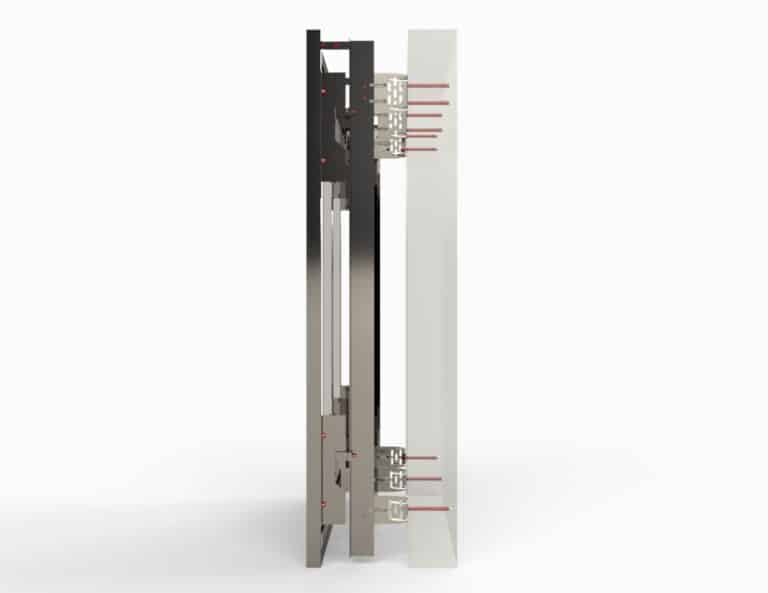

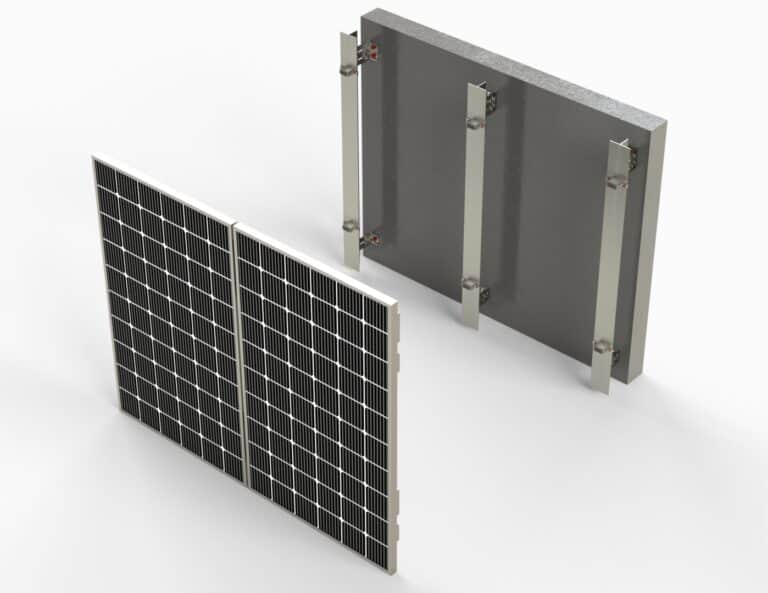

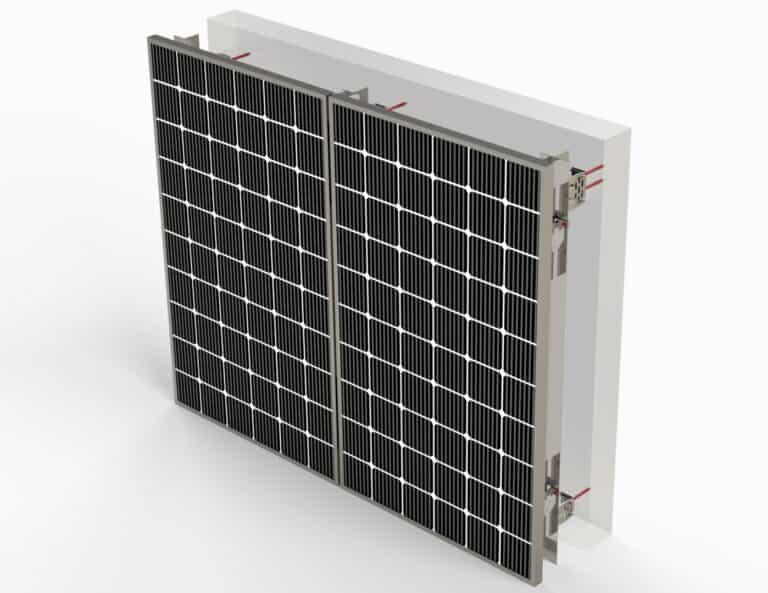

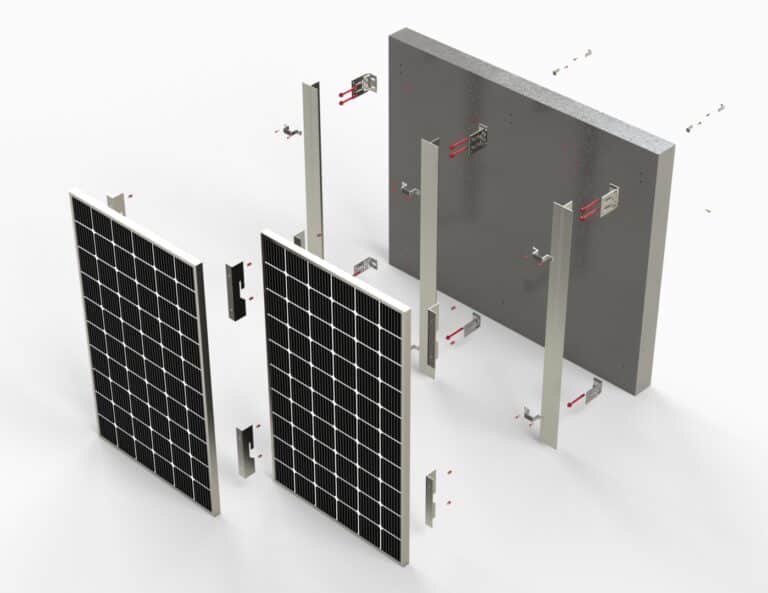

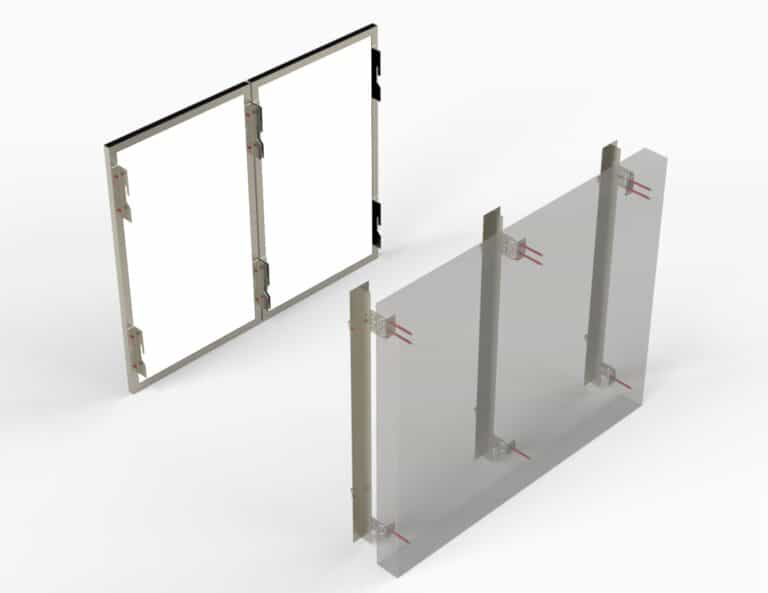

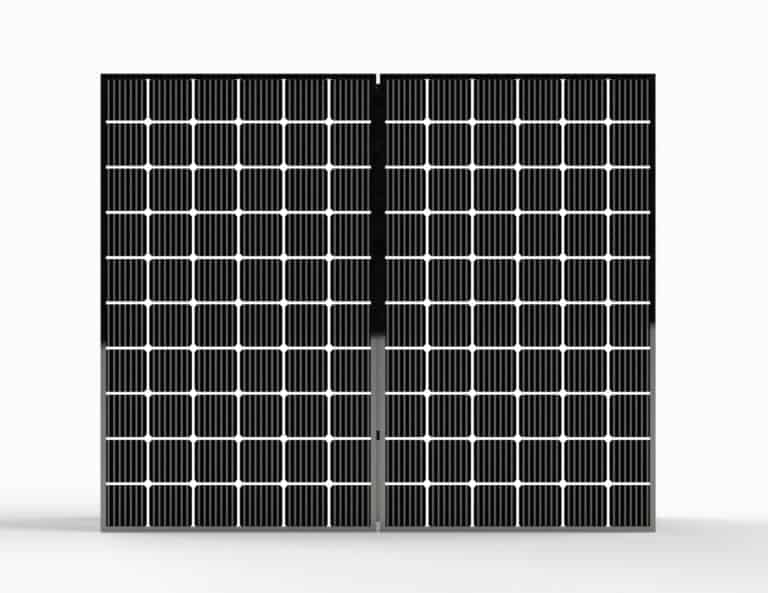

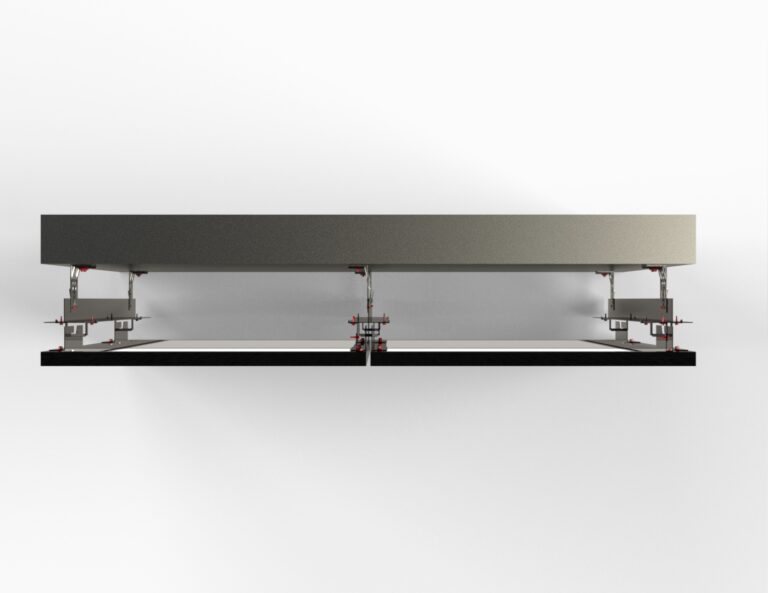

System for horizontal solar panels cladding applications Solar Panels are secured using AGS W1 brackets to provide a concealed fixing. AGS – T and L profileare fixed using AGS brackets, mounted through single and double brackets.

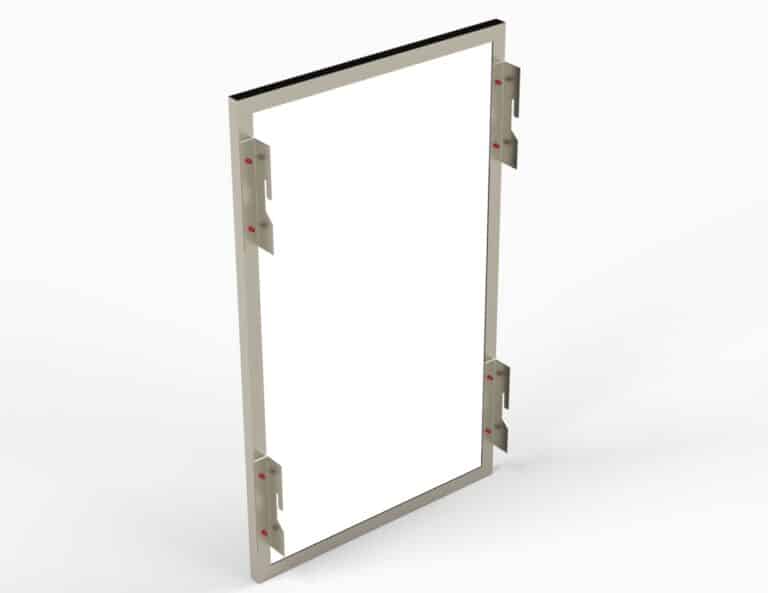

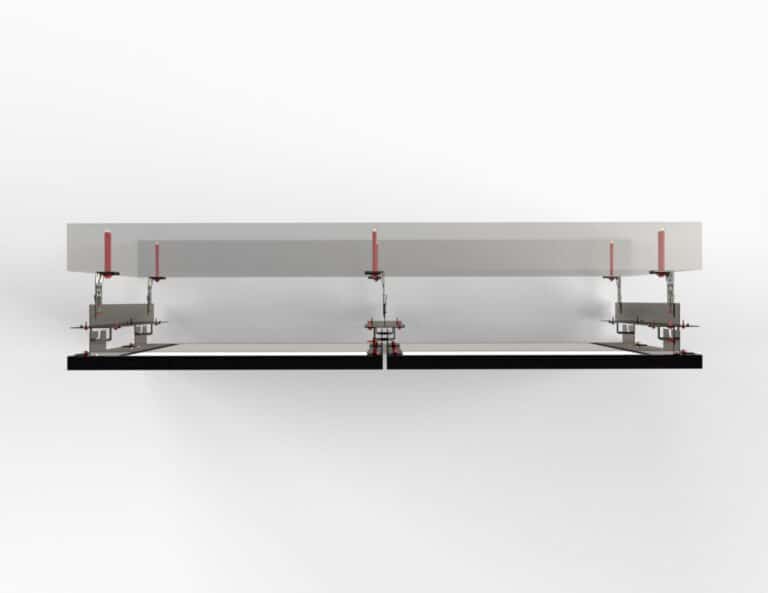

AGS Single brackets absorb wind loading and allow for expansion and contraction. AGS Double brackets absorb both vertical dead loads.

AGS single and double brackets spacing is determined by cladding options such as the dimensions and weight of the facade cladding, project location for wind loads calculation.

Available Profiles

L Shaped Profiles

L Shaped Profiles

Aluminium L Profiles

NameDimensions A (mm)Dimensions B (mm)Thickness (mm)
L Profile K160 mm40 mm2 mm
L Progile K220 mm40 mm2 mm
L Profile Hangers60 mm40 mm2 mm
L Profile 0140 mm40 mm2 mm
L Profile 0250 mm50 mm2 mm

Magnelis L-Profiles

NameDimensions A (mm)Dimensions B (mm)Thickness (mm)
L Profile M160 mm40 mm1.5 mm
L Profile M260 mm100 mm1.5 mm
L Profile M360 mm40 mm1 mm
L Profile M460 mm100 mm1 mm
L Profiles Windows60 mm160 mm1.5 mm

Aluminium T Profiles

NameDimensions A (mm)Dimensions B (mm)Thickness (mm)
T Profile T160 mm100 mm2 mm
T Profile T260 mm40 mm2 mm
T Profile T392 mm90 mm2 mm
T Profile 0150 mm110 mm2 mm
T Profile 0250 mm120 mm2 mm
T Profile 0370 mm120 mm2 mm
T Profile 0450 mm140 mm2 mm
T Profile s/Steel insert fire rated 120 minutes60 mm100 mm2 mm

T Shaped Profiles

T Shaped Profiles
